The Bedrock of Structural Excellence: Advanced Pile Foundation Services
Engineering Unwavering Stability for South India’s Most Ambitious Structures.
At Bharat Pile Foundation, we don’t just build foundations; we engineer certainty. From the high-rises of Bengaluru to the challenging coastal terrains of Kerala and Tamil Nadu, our deep foundation solutions ensure that your vision stands on ground that never gives way.
Understanding Pile Foundation
(Deep Foundation)
A Pile Foundation is a sophisticated deep foundation system used when surface soil is too weak, silty, or compressible to support a structure’s weight. While standard shallow foundations sit near the surface, piling involves installing long, slender structural columns deep into the earth. These columns act as high-capacity conduits, bypassing unstable topsoil to anchor your project into hard, load-bearing rock or dense soil strata.
Our Engineering Methodology
We utilize state-of-the-art drilling and driving technology to customize foundations based on your specific site morphology:
Bored Piles (Drilled & Cast-in-Situ)

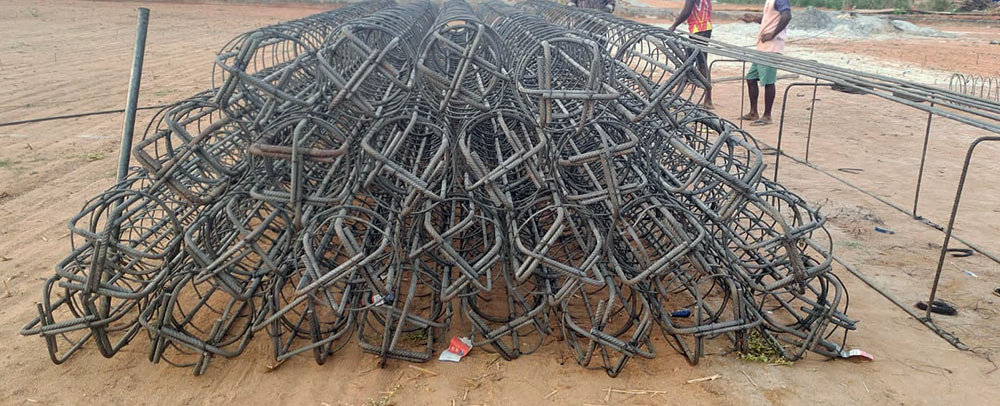

We precision-drill deep shafts into the ground, which are then reinforced with high-tensile steel cages and filled with industrial-grade concrete.
Best for:
Urban environments, as this method minimizes vibration and noise pollution
Capacity:
High-diameter options for massive structural loads.
Driven Piles
Pre-fabricated columns of steel, concrete, or timber are mechanically hammered or vibrated into the ground until they reach a predetermined resistance level.
Best for:
Testing soil resistance in real-time during installation and projects in non-congested areas.
Key Advantages of Piling
Environmental Versatility:
Piling is the only viable solution for building on swamps, riverbeds, or reclaimed land where surface soil is unreliable.
Settlement Prevention:
By transferring loads to deeper, incompetent strata, we virtually eliminate the risk of a building sinking, tilting, or experiencing "differential settlement."
Deep Reach Stability:
While surface treatments are shallow, our piles typically reach depths of 10 to 40+ meters to anchor the structure below the "active zone" of soil movement.
Superior Load-Bearing Capacity:
Piles leverage both End Bearing (resting on solid rock) and Skin Friction (gripping the soil along the shaft) to support massive vertical and lateral forces.
Ideal Applications & Industry Use
Piling is a technical necessity for high-stakes construction and challenging environmental contexts:
Industrial Plants:
Heavy machinery foundations requiring vibration resistance.
Waterfront Sites:
Locations near lakes or seashores with high water tables and risk of soil liquefaction.
Infrastructure:
Bridges, flyovers, and water-retaining structures.
High-Rise Development:
Residential and commercial towers with high-magnitude pressure.
Technical Specifications
We offer bespoke engineering solutions tailored to your load calculations:
|
Pile Diameter |
Typical Depth |
Ideal For |
|
300 mm |
6 – 10 Meters |
Residential apartments, private villas, and standard infrastructural projects. |
|
450 mm |
10 – 15 Meters |
High-rise residential complexes, commercial hubs, and medium industrial units. |
|
600 mm+ |
20 – 40+ Meters |
Heavy industrial plants, massive civil works, and structures in extreme soil conditions. |
Partner with South India's Piling Experts
At Bharat Pile Foundation, we believe the best structures are born from synergy. We collaborate directly with architects and structural engineers to provide pre-design consultations, ensuring the "below-the-ground" execution is as flawless as the architectural vision above.
